Doors

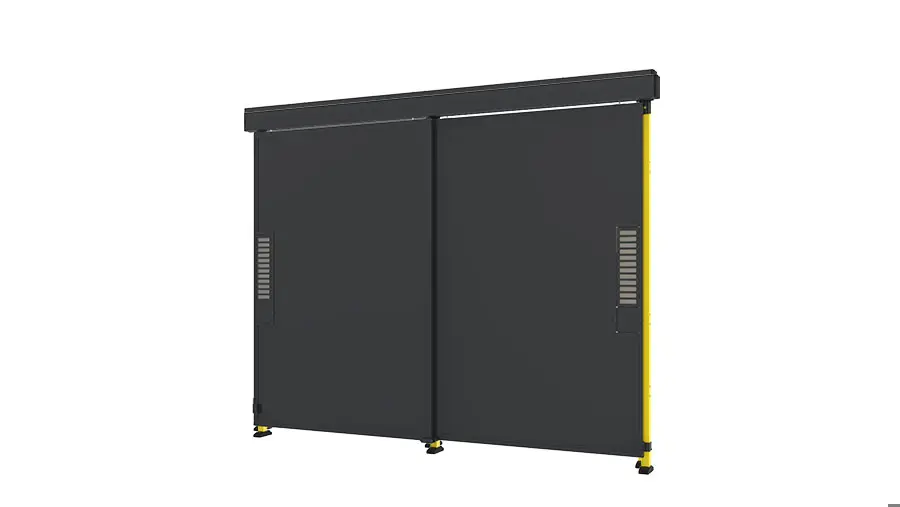

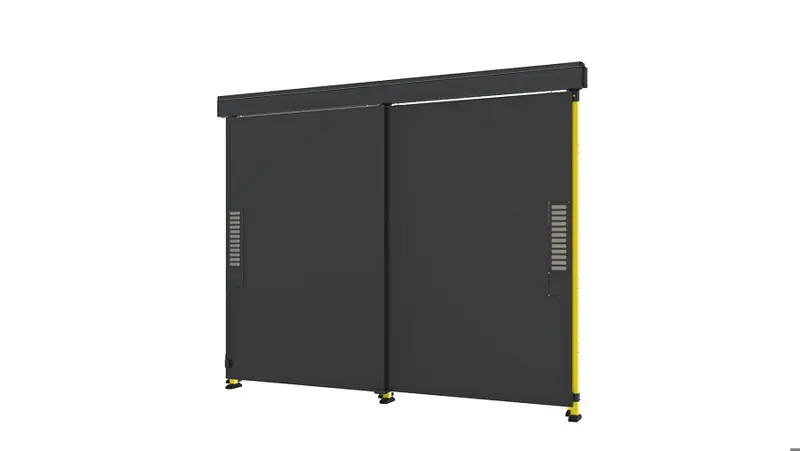

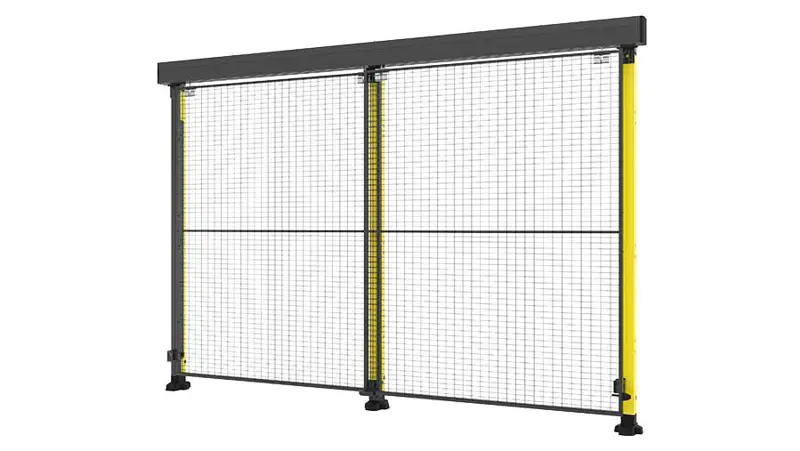

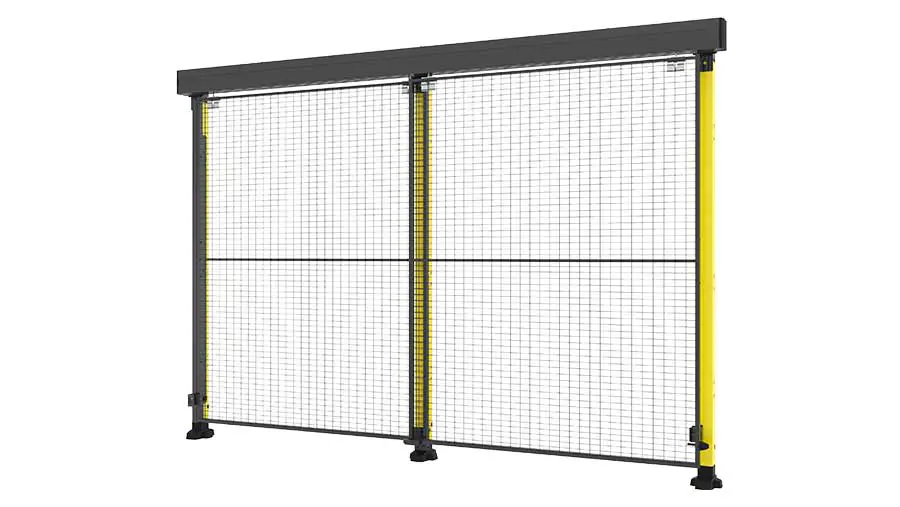

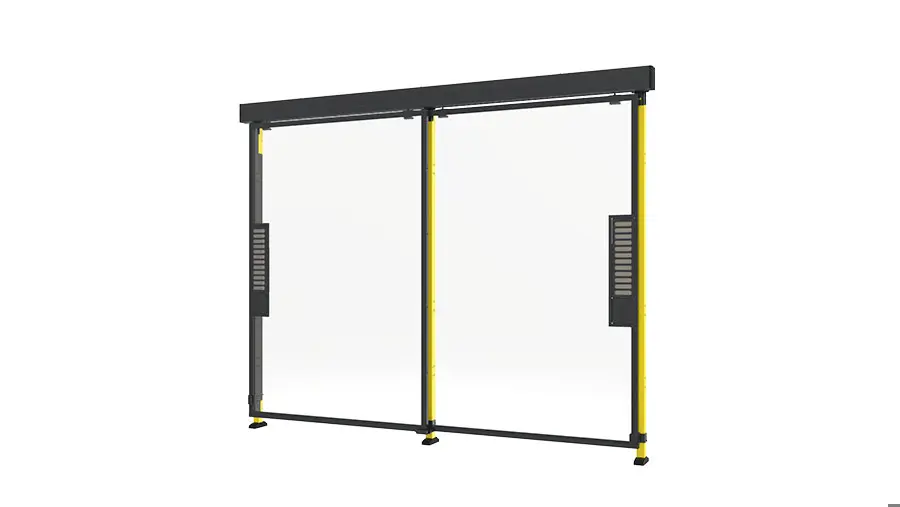

Double sliding door, overlapping

3D

An overlapping sliding door is the perfect solution where space is limited. The sliding door can also be used when there are two output points from one machine.

Get your quote now

Models

  • Height 2000 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D24-200140 Double sliding door, overlapping 1380 2000 Mesh Classic 50x50
    2
    D24-200290 Double sliding door, overlapping 2880 2000 Mesh Classic 50x50
    2
    D44-200140 Double sliding door, overlapping 1340 2000 Mesh Premium 70x70
    1 2
    D44-200290 Double sliding door, overlapping 2840 2000 Mesh Premium 70x70
    2
  • Height 2300 mm

    6 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D24-230140 Double sliding door, overlapping 1380 2300 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    4 2
    D24-230290 Double sliding door, overlapping 2880 2300 Mesh Classic 50x50
    2
    D44-230140 Double sliding door, overlapping 1340 2300 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    4 2
    D44-230290 Double sliding door, overlapping 2840 2300 Mesh Premium 70x70
    2
    DP24-230290 Double sliding door, overlapping 2880 2300 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP44-230290 Double sliding door, overlapping 2840 2300 Plastic
    Sheet metal
    Premium 70x70
    4 2
  • Height 2500 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D24-250140 Double sliding door, overlapping 1380 2500 Mesh Classic 50x50
    2
    D24-250290 Double sliding door, overlapping 2880 2500 Mesh Classic 50x50
    2
    D44-250140 Double sliding door, overlapping 1340 2500 Mesh Premium 70x70
    2
    D44-250290 Double sliding door, overlapping 2840 2500 Mesh Premium 70x70
    2

Downloads

D24_DP24_D44_DP44-XXX290

Assembly instruction

X-Guard Technical

Brochure

Product information

An overlapping sliding door is the perfect solution where space is limited. The sliding door can also be used when there are two output points from one machine.

The door is available in different heights and maximum width is 2x2900 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)
