Panels

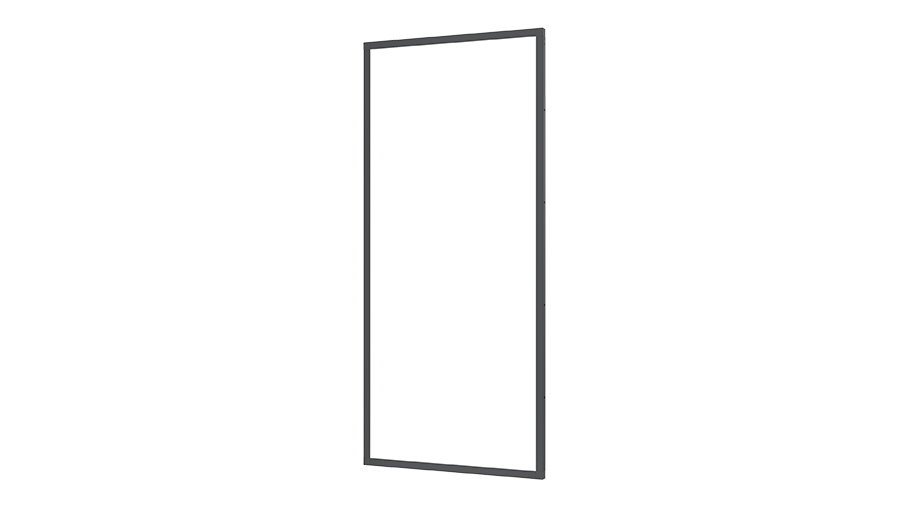

Plastic panel

3D
The X-Guard series also includes plastic panels. Some environments require more comprehensive protection, which our see-through plastic walls can provide. The plastic panel comes in three heights and four widths. The plastic panels are made of 2 mm thermoplastic polyester and has a 30x20 mm frame... Get your quote now

Models

  • Height 750 mm

    4 Articles
    CAD Article Height x Width (mm) Color
    W328-075025 750x250 Graphite Black (RAL 9011)
    W328-075040 750x400 Graphite Black (RAL 9011)
    W328-075070 750x400 Graphite Black (RAL 9011)
    W328-075100 750x1000 Graphite Black (RAL 9011)
  • Height 1900 mm

    4 Articles
    CAD Article Height x Width (mm) Color
    W328-190025 1900x250 Graphite Black (RAL 9011)
    W328-190040 1900x400 Graphite Black (RAL 9011)
    W328-190070 1900x700 Graphite Black (RAL 9011)
    W328-190100 1900x1000 Graphite Black (RAL 9011)
  • Height 2200 mm

    4 Articles
    CAD Article Height x Width (mm) Color
    W328-220025 2200x250 Graphite Black (RAL 9011)
    1
    W328-220040 2200x400 Graphite Black (RAL 9011)
    1
    W328-220070 2200x700 Graphite Black (RAL 9011)
    1
    W328-220100 2200x1000 Graphite Black (RAL 9011)
    1
  • Height 2400 mm

    4 Articles
    CAD Article Height x Width (mm) Color
    W328-240025 2400x250 Graphite Black (RAL 9011)
    W328-240040 2400x400 Graphite Black (RAL 9011)
    W328-240070 2400x700 Graphite Black (RAL 9011)
    W328-240100 2400x1000 Graphite Black (RAL 9011)

Downloads

X-Guard Assembly Guide Plastic panel

Assembly guide

X-Guard - technical brochure

Brochure

Technical Specifications

The X-Guard series also includes plastic panels. Some environments require more comprehensive protection, which our see-through plastic walls can provide.

The plastic panel comes in three heights and four widths. The plastic panels are made of 2 mm thermoplastic polyester and has a 30x20 mm frame with factory-fixed brackets to facilitate assembly. The standard color of the frame is black (RAL 9011), but the panel in height 2200 mm is also available in grey (RAL 9018).



X-Guard plastic panels are easy to fit and you can use the same posts and door packages as for our other X-Guard products. To avoid gaps between the panel and post we recommend you to fit the Cover strip included with the plastic panel. Our plastic walls can withstand temperatures of up to 60 degrees and are available in transparent plastic.
